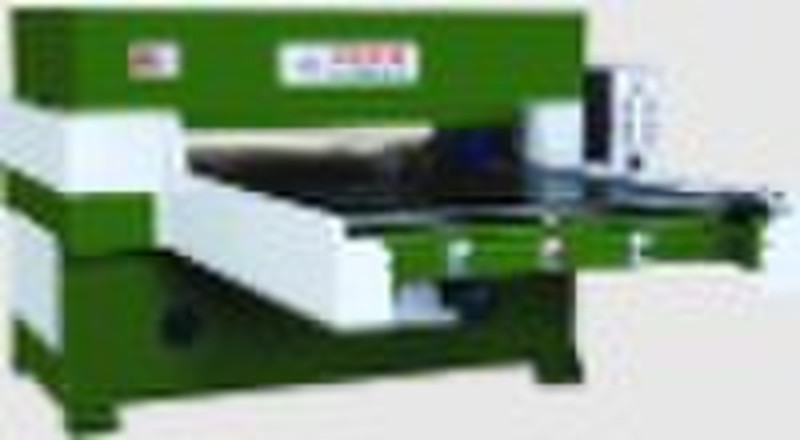

Hydraulic Cutting Press

USE AND CHARACTER The machine is specially used for cutting of leather,paperboard,foamed sponge,EPE,foamed cotton and cloth plastics etc. A.Double oil cylinder precise four-column automatic balanced connection rod mechanism can guarantee that the cutting precision at every cutting position is ±0.2mm. B.The cutting head will automatically slow down when it is pressed down to contact 10mm before the cutter so that there is no dimension error between the uppermost layer and lowermost layer when cutting materials of multiple layers. C.The accurate cutting balancing can greatly reduce the wearing of die cutter and cutting board. D.PLC programmable control,with single and double motor automatic feeding mechanism. E.The frequency conversion buffering makes the position alignment precision reach 0.2mm(used for molds) F.The micro-movement design design of cutting board enables the cutting to be made at different positiongs,with better effect at the cutting edges,which can further reduced the wearing of cutting board. G.The double side motor automatic feeding mechanism can be applicable for die cutters of different heights,so as to enhance 80%working efficency. TECHNICAL SPECIFICATION Model number XCLP3-1000 XCLP3-1500 XCLP3-2000 XCLP3-3000 Maximum cutting force 1000KN 1500KN 2000KN 3000KN Stroke adjustment 60-240mm Motor power 7.5kw-15kw Table area Custom-made according to customer demand
