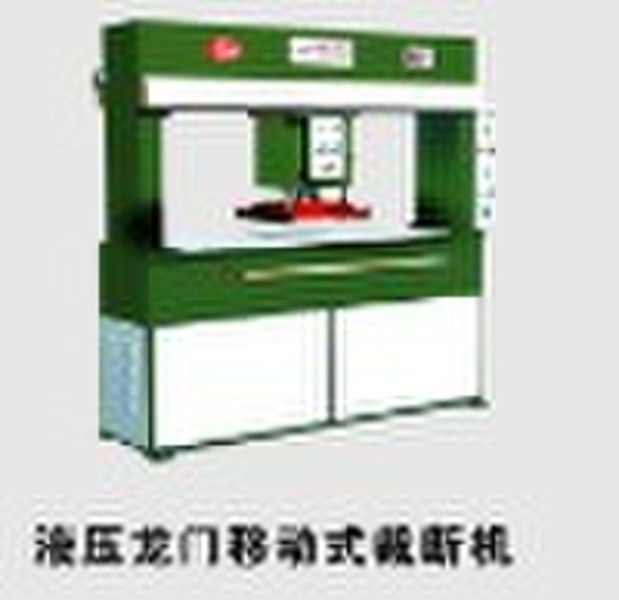

Hydraulic Pressure Gantry Moving Cutting Machine

USE AND CHARACTER It is used to cut a layer or multi-layers of lesther,plastic,hard papers,fibres,chemical fibres,etc. A.It is easy to adjust low voltaye and set travel. B.Rising position of press board can be set travel. C.Press board can be move towands right or left opera-tion visibility is very good. TECHNICAL SPECIFICATION Model number XCLP2-250 Max scissoring force 250KN Sway arm width 10-125mm Scissoring speed 0.18m/s Distance between upper and lower table 40-165mm Press board(length*width) 500*500mm Table area 1760*500mm Main motor power 2.2kw Auxillory motor 0.37kw
